Custom steel enclosures shaped around your project

Start with your site plan, prototype detail or dimensioned sketch. We review the footprint, heights, gates and finish, then develop a steel enclosure layout that fits your project and its access requirements.

Structural steel · Engineered to ASCE 7-22 for your site · Sealed calculations available in all 50 states

Custom fabricated

Adapt the enclosure to the site

Build around the layout your project needs. Alpine reviews your drawing, adapts the steel system to the footprint and access requirements, and coordinates custom features with project engineering.

Aerial view of an L-shaped structural steel enclosure with two gates

Layouts, access and finishes to suit your design

Custom work can include angled walls, notches, partitions, multiple gates and steel roofs. We also review alternate infill, mounting and post options for enclosure and equipment-screening applications.

Option
Standard
Custom (engineered per project)
Height
6 ft, 7 ft, 8 ft
5 ft to 10 ft; other heights by engineering
Layout
Layout coordinated with the architect’s drawing; final dimensions shown on the approved plan
Any angle, L-shapes, notches, interior partitions, double and multi-bay enclosures
Bays (clear, post to post)
Standard set, 15–96 in
Non-standard widths
Infill
Solid steel tube slats, 0.79 × 3.15 in (20 × 80 mm), 100% opaque
Spaced slats (custom spacing for airflow or visibility); perforated metal panels
Posts
4 in square structural steel tube; 8 in round gate posts
Custom post profiles and sizes
Mounting
Base-plated on a concrete slab, ¾ in hot-dip galvanized plates
Embedded posts
Gates
12 ft or 16 ft clear, double leaf, swing out
20 ft clear double leaf; 6 ft single leaf; corner-hinged gates; multiple gates per enclosure
Finish
Galvanized steel, powder coated to QUALICOAT standards
RAL color selection confirmed by sample; hot-dip galvanizing of the entire structure where the site or specification calls for it
Options
—
Bollards; covered (steel-roofed) enclosures; pedestrian gates
Delivery
One kit per enclosure, tagged by bay
Kits organized by site and release
The process

From design intent to a coordinated enclosure kit

We guide the project from drawing review through layout, engineering, submittal and delivery. The following steps show what your team provides and what Alpine prepares.

Step 1
Send your drawing

An architect's site plan or enclosure detail, a brand prototype drawing, or a dimensioned sketch, plus the site address.

Step 2
Layout and bay schedule

Review a dimensioned plan showing post spacing, gates, partitions and access openings.

Step 3
Engineering package

Structural calculations to ASCE 7-22, anchorage design, slab and base-plate requirements; sealed where the jurisdiction requires it. Timing confirmed after scope review.

Step 4
Submittal package

After you approve the layout: drawings, product data, calculations and finish specification for the architect and building department.

Step 5
Kit ships tagged by bay

One kit per enclosure, hardware packed with 10% extra, spare slats, a packing list and a layout drawing.

Step 6
Install on the prepared foundation

The crew anchors the posts, fits the slats and hangs the gates. Most enclosures install in one day; custom layouts follow the agreed schedule.

What to send

What do I need to send you?

Send a site plan, enclosure detail or dimensioned sketch with the project address. Include the required height, containers or equipment, access needs and any local requirements already identified.

  • Files we accept: PDF, DWG, DXF, and photos or scans of a sketch (JPG, PNG).
  • Helpful but optional: container count and size, gate swing direction, slab status (new or existing), finish color.
  • Early design is welcome. We can review a dimensioned sketch before a complete drawing set is available.
What you get back

Clear drawings, scope and next steps

Bays, gates and partitions coordinated in a dimensioned layout for your approval.

Sample enclosure layout with bay schedule
Deliverable
What it shows
Dimensioned layout
Overall dimensions, post spacing, gate openings and partitions
Bay schedule
Every bay by clear width, so posts, slats and gates match the plan
Plan drawing
The enclosure as it will be built, with gate positions and swing
Engineering package
Structural calculations to ASCE 7-22, anchorage design, slab and base-plate requirements; sealed where the jurisdiction requires it

How do custom options affect the engineering?

Changes to height, infill, gates or mounting can affect the structural design. Alpine evaluates the selected configuration for the site and provides the loading and support requirements needed for the project engineer’s foundation design.

How we engineer each site

Can you match a building, a brand prototype or a local code?

We coordinate the layout and finish with the building or brand requirements. If the local code prescribes masonry, confirm whether an alternate-materials review is available before specifying steel. Send height limits, access requirements and any required roof or storage details with your drawing.

Does a custom enclosure cost more than a standard one?

Custom pricing depends on the layout, height, gates, finish and engineering requirements. Alpine confirms those options in a project quote. Published single and double enclosure ranges provide an initial budget reference and exclude the slab and site work.

What happens after the layout is approved?

We prepare the drawings, product data, calculations and finish information required by the agreed submittal scope. After approvals and release, the kit is organized for delivery and installation.

Configurations to review with your project team

  • Double enclosure with a shared center gate post; local acceptance and hauler access confirmed before selection.
  • Tire storage layout coordinated with the fire marshal’s access, pile and separation requirements.
  • Corner-hinged gates where a tight site leaves no room for a centered gate.
  • Screen walls with spaced slats or perforated metal panels around equipment that needs airflow.
  • Covered, steel-roofed enclosures where the jurisdiction or the owner wants a roof.
  • Interior partitions that separate trash, recycling and carts inside one enclosure.

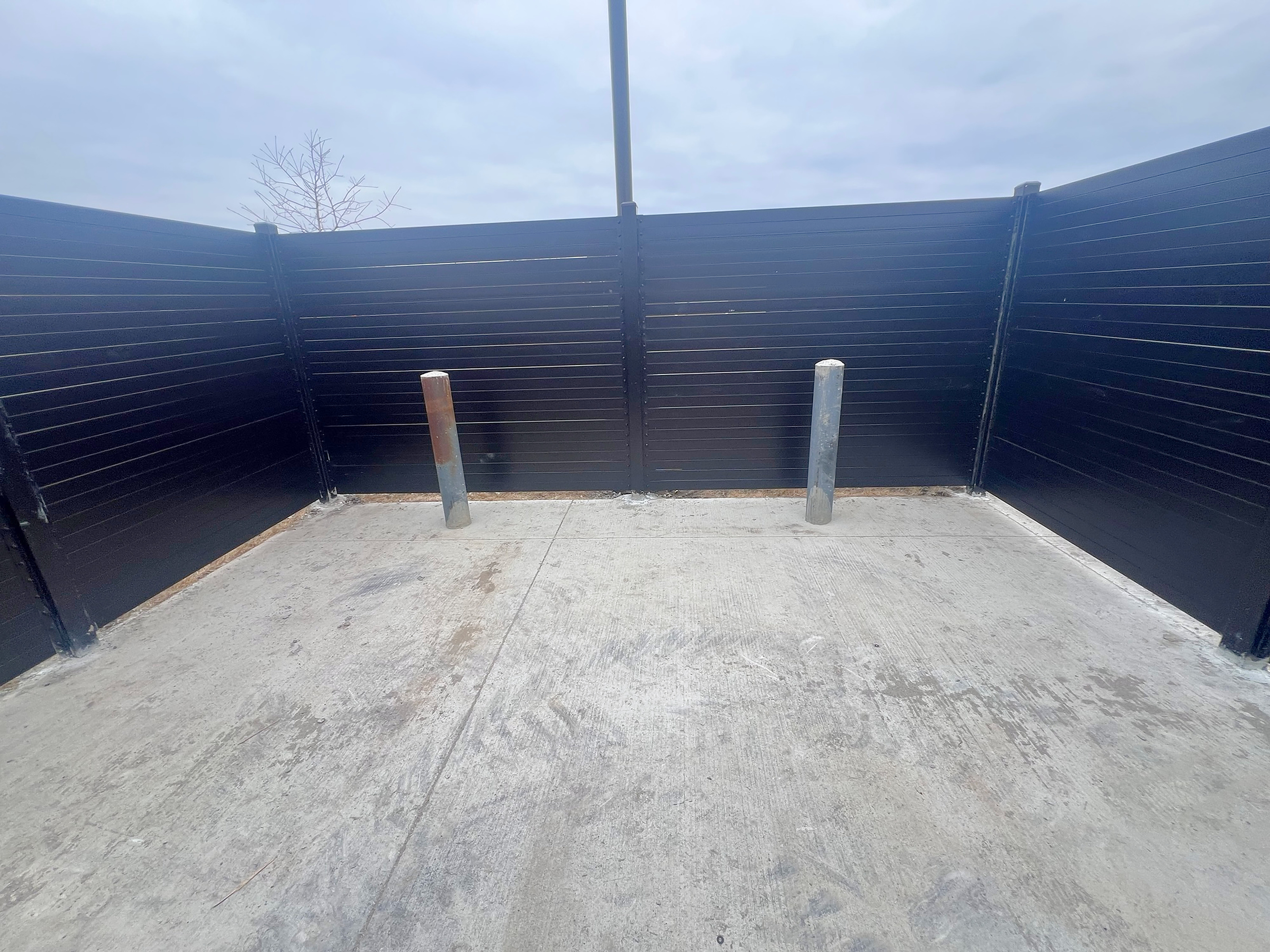

Tire storage enclosure interior with bollards, structural steel slats

Interior partitions, corner-hinged gates and bollards are routine custom work, engineered per project.

Downloads

Downloads to start from

Start with the product data sheet, example layouts, CAD details and editable guide specification, all available for immediate download. Contact Alpine to discuss project-specific submittals.

Download
Format
Access
Alpine Citadel product data sheet (AES-CIT-DS-01)
PDF
Open download
Standard-size sheets: single, single wide, double at 6, 7 and 8 ft
PDF
Open download
CAD details: plan, elevation, gate, base plate, embedded post, slab
DWG + PDF
Open download
Sample submittal package
PDF
Contact Alpine

Custom fabrication questions

Can Alpine build an enclosure with angles other than 90 degrees?
Yes. We review angled layouts, L-shapes, notches, partitions and multiple bays from your drawing. Dimensions and structural details are confirmed before fabrication.
What file types can I upload?
Upload PDF, DWG or DXF drawings, or JPG and PNG photos of a sketch. A dimensioned sketch is enough to start. Include the site address so we can look up the wind speed and exposure category, and tell us the containers or equipment the enclosure has to hold or screen.
Can you build enclosures taller than 8 ft?
Custom heights from 5 to 10 ft can be reviewed for your project. Send the required screen height, layout and site address so we can confirm feasibility, structural requirements and local height limits before quotation.
Can we have a double enclosure without a center post?
The standard double has a shared center gate post. Some local authorities or haulers prohibit that arrangement. Send the requirement with your plan so we can review whether a suitable configuration is available before you select the system.
Do custom enclosures come with sealed calculations?
Sealed calculations are available in all 50 states. We confirm the engineering and sealing requirements for the custom layout, site conditions and local review.
Can a custom design become our standard for many sites?
Yes. Your approved design can establish the product and finish standard for a rollout, with layouts, engineering and deliveries coordinated for each location.
Start with your drawing

Turn your enclosure concept into a project layout

A drawing, a prototype detail or a sketch is enough to start.
