Engineering support for steel enclosures and screen walls

Get the structural documentation your project needs. Alpine coordinates the enclosure layout, loads, anchorage and foundation requirements, with site-specific calculations and support for the submittal process.

Engineered for the address

A coordinated structural design

Project engineering checks the enclosure configuration, wind speed, exposure, risk category, connections and anchorage against the site requirements. The reference design uses ASCE 7-22; the project team confirms the adopted code, design scope and sealing requirements before submittal.

Which codes and standards govern the design?

The reference design uses ASCE 7-22 for loads, AISC 360 for structural steel and ACI 318 Chapter 17 for anchorage to concrete. The project engineer confirms the editions and provisions required by the locally adopted building code, along with the permit and submittal scope.

Scope
Standard
Wind loads
ASCE 7-22
Structural steel
AISC 360
Anchorage to concrete
ACI 318, Chapter 17
Wind speed look-up
ASCE Hazard Tool
Building permit threshold for fences
Permit requirements confirmed with the local authority and adopted code
Design basis

Engineering around your site conditions

Alpine Citadel is engineered for each project’s wind speed, exposure category, risk category, height, gate arrangement, anchorage and foundation. It has no single wind rating. The engineer confirms the post spacing, member sizes and connections required for your site.

Parameter
Engineered per project
Design standard
ASCE 7-22
Height
6, 7 and 8 ft standard; other heights reviewed per project
Ultimate wind speed
Per site, from the ASCE Hazard Tool
Exposure category
B, C or D, per site
Risk category
As assigned for the project
Steel
ASTM A36 or equivalent structural steel, sized by the project design; mill certificates available. Hardware typically Grade 8 and 316 stainless steel
Posts
4 in square structural steel tube typical; 8 in round gate posts; base-plated or embedded
Base plates
Hot-dip galvanized ¾ in steel — line 10½ × 8 in, corner 10½ × 10½ in, gate 18½ × 13 in
Anchors
¾ in: 4 per line or corner plate, 8 per gate plate
Slab (typical)
f′c ≥ 4,000 psi; thickened to 12 in at posts; 30 × 30 × 12 in at gate posts

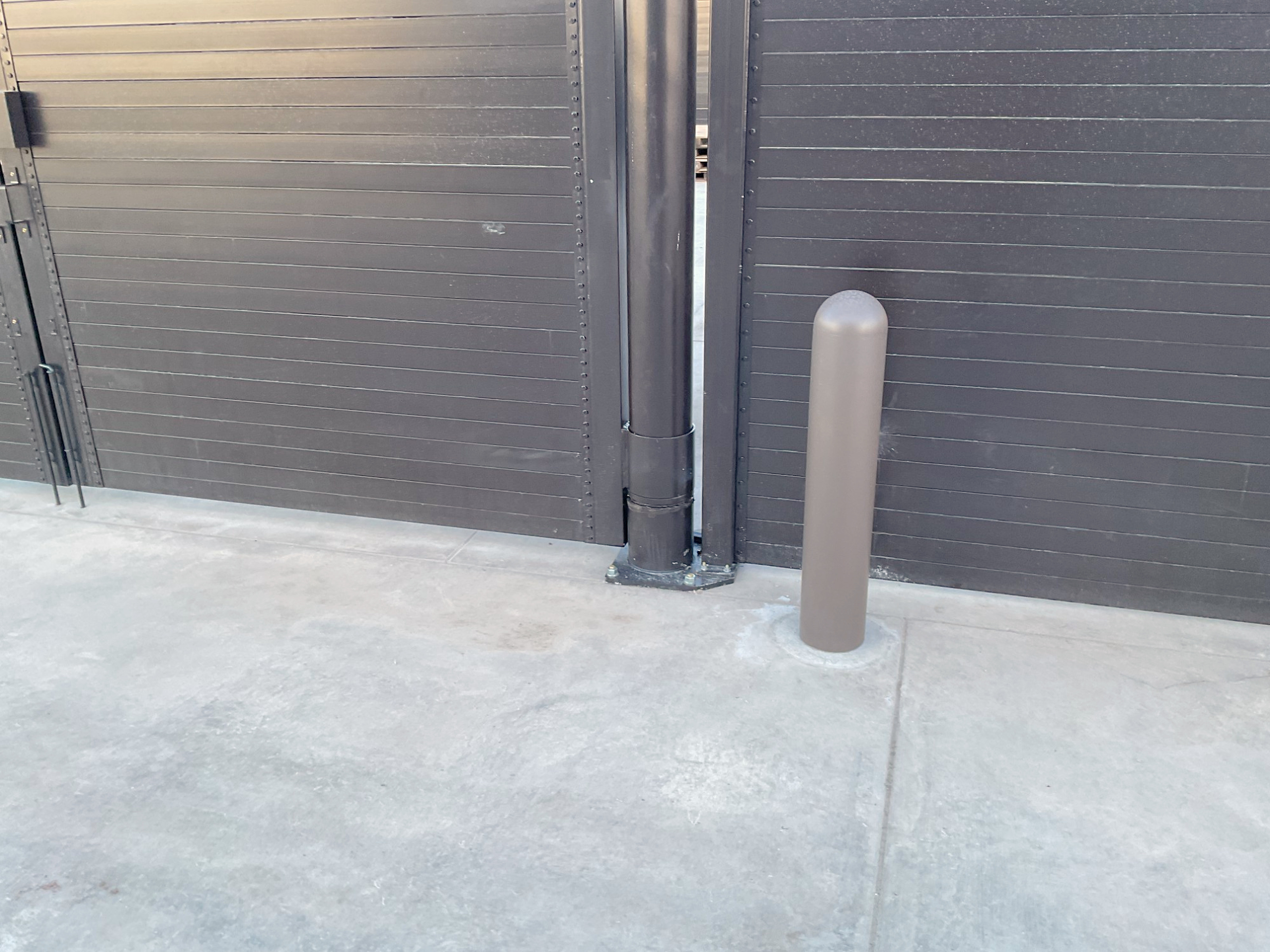

Round steel gate post on a ¾ in hot-dip galvanized base plate with ¾ in anchors

Typical 8 ft bay: approximately 4 in square steel tube post on a hot-dip galvanized ¾ in base plate, four ¾ in anchors, slab thickened to 12 in at the post.

Design coordination

Posts, panels, gates and anchorage

The engineering package brings the enclosure layout, components and site conditions together. It covers the selected height, infill, gates and mounting so the calculations match the proposed installation.

We engineer for
What that covers
Enclosure type
Trash and recycling, compactor, tire storage, equipment yard, covered (steel-roofed) enclosures; mechanical, generator, transformer, utility, data center and BESS screen walls
Enclosure profile
Height, footprint, bay spacing, infill, post profiles, mounting and gate arrangement; custom configurations reviewed before quotation
Site profile
ASCE 7-22 wind speed, exposure category and risk category; new slab or existing pad; anchor type; local code
Wind speed

How do I find the design wind speed for my site?

Send the project address and any design criteria established by your engineer. Alpine uses the ASCE Hazard Tool to identify site wind data and reviews exposure and risk category with the project team.

Anchors, slab and infill

Base plates on the slab, engineered for the loads

Each post bolts to a hot-dip galvanized ¾ in steel base plate. The anchor type, slab requirements and any porous-infill reduction are stated in the project calculations.

How are the posts anchored?

Each post bolts to a hot-dip galvanized ¾ in steel base plate: 10½ × 8 in at line posts, 10½ × 10½ in at corners and 18½ × 13 in at gates. Line and corner plates take four ¾ in anchors, gate plates eight. The anchor type is selected and engineered per project under ACI 318 Chapter 17: adhesive threaded rod or a code-listed mechanical anchor, chosen for the slab and loads on each project.

What slab does Alpine Citadel need?

In the typical configuration, the slab is concrete with f′c of at least 4,000 psi, thickened to 12 in at posts and to 30 × 30 × 12 in at gate posts. The project engineer designs the slab; Alpine provides the slab and base-plate requirements, so the design team knows exactly what the posts need before the concrete is placed.

Can posts be embedded instead of base-plated?

Yes, as a custom option. Base plates on a concrete slab are the standard because they suit a prepared hauler pad and need project-specific concrete support. Where a project calls for embedded posts, for example on a covered enclosure or where there is no slab, the foundation is designed per project for the site's soil and loads.

Do spaced slats or perforated panels reduce the wind load?

Open area can affect wind loads, but a reduction is not automatic. The engineer evaluates the panel geometry, site conditions and applicable design provisions for the selected infill.

The package

A defined engineering scope and schedule

The engineering package includes the layout and bay schedule, structural calculations, anchorage design, and slab and base-plate requirements for the project engineer. Sealed calculations are available in all 50 states. Engineering is included for the example configurations; custom engineering is quoted per project. Typical turnaround is under one week after complete project information is received.

Package item
Purpose
Layout and bay schedule
Confirms the enclosure matches the architect's dimensions
Structural calculations (ASCE 7-22, AISC 360)
Posts, gate posts and connections at the site's wind loads
Anchorage design (ACI 318 Ch. 17)
Anchor type, quantity and embedment per plate
Slab and base-plate requirements
What the project engineer's slab design must provide at posts and gate posts
Seal
Available in all 50 states; sealed for the project location where required
Cost
Included for the example configurations; non-standard engineering (custom heights, high wind, Exposure D, embedded posts, roofs, custom profiles) quoted per project

Do I need a building permit and sealed calculations?

Confirm with the local building and planning departments. Permit requirements depend on the adopted code, enclosure height, roof, use and local amendments. Where required, the project package includes calculations sealed by an engineer licensed for that location.

Does Alpine Citadel provide acoustic, fire or impact protection?

Alpine Citadel is a visual screening system with no acoustic, fire-barrier, intrusion or vehicle-impact rating. Coordinate any required specialty protection separately with the project design team.

Downloads

Engineering downloads

Download the engineering overview, product data, CAD details and editable guide specification directly. Contact Alpine to discuss the drawings and calculations required for your project submittal.

Download
Format
Access
Engineering overview: ASCE 7-22 basis, 50-state sealing, anchors, slab
PDF
Open download
Alpine Citadel product data sheet (AES-CIT-DS-01)
PDF
Open download
CAD details: base plates, anchors, slab section, embedded post, gate post
DWG + PDF
Open download
Sample submittal package with calculation summary
PDF
Contact Alpine

Enclosure material comparison

Alpine Citadel vs. concrete block (CMU)

Choosing between steel and block starts with the same questions: what must the enclosure screen, how will it be accessed, and what does the site allow? CMU means concrete masonry unit—the concrete block used to build masonry walls.

1. Compare how each enclosure is built

CompareAlpine CitadelConcrete block (CMU)
Wall constructionFactory-prepared steel posts and horizontal slats, assembled on site.Concrete blocks laid on site, with reinforcement and grout as designed.
GatesSteel gates and operating hardware supplied with the enclosure.Gate supply, posts and hardware coordinated with the masonry walls.
FoundationPosts anchored to a project-designed concrete slab or supports.Walls typically supported on continuous concrete footings.
InstallationMost enclosures assemble in one day once the foundation is ready.Schedule includes wall construction, grout and curing, plus gate installation.
AppearanceHorizontal steel slats with a factory-applied powder-coated finish.Block walls with the specified masonry texture, color or applied finish.

Both systems require foundations designed for the project. Existing concrete must be reviewed before it is used to support an enclosure. Citadel’s one-day estimate covers assembly of most enclosures after the concrete is ready; design, approvals, fabrication, delivery and concrete work are additional schedule items for your team to coordinate.

2. Compare the complete project cost

The lowest wall price is not necessarily the lowest enclosure cost. Request both quotes for the same footprint, wall height, gate openings and finish requirements. Confirm who provides the engineering, concrete, delivery and installation.

Citadel single enclosure

$15,000–20,000

Nominal 12 × 16 ft · 8 ft high
Typical installed range

Citadel double enclosure

$21,000–30,000

Nominal 24 × 12 ft · 8 ft high
Typical installed range

Included: the steel enclosure, gates, hardware, base plates, installation and engineering package for these example configurations. Additional: concrete and site work. Your quote confirms delivery and all project-specific inclusions.

For CMU: Alpine Citadel costs less than a comparable CMU enclosure. 2025 public bids priced complete single enclosures at $20,000–30,000. Obtain a local CMU quote for the same layout and complete scope to compare at your site.

3. Confirm which material fits the project

Consider Citadel when you want horizontal steel screening, coordinated gates and on-site assembly of factory-prepared parts. Powder-coat colors can complement the building’s exterior; approve the final color from a physical sample.

Choose CMU when the project calls for the appearance or performance of a masonry wall, or the local authority requires masonry and does not approve an alternative. Fire-rated or acoustic requirements need a specifically designed assembly; standard Citadel screening is not a rated fire or acoustic barrier.

Confirm material approval with the local planning or building department before specification. Alpine can provide product data, drawings and project calculations to support that review.

Masonry construction reference: Concrete Masonry & Hardscapes Association construction guidance.

Engineering questions

Are the structural calculations sealed?
Yes, where the jurisdiction requires it. Sealed calculations available in all 50 states. Each project package is engineered for its own site conditions, including wind speed, exposure category, risk category, height, anchors and foundation, then sealed for the permit.
Can Alpine engineer for higher wind speeds or other exposure categories?
Send the site location and design criteria for review. Higher wind loads may require changes to post spacing, post sections, anchors or foundations. The project engineer evaluates the actual configuration and confirms whether the system can meet the site requirements.
What risk category do you use?
The risk category for a project depends on the building and the use it serves, so it is confirmed per project with the design team and entered with the site's wind speed and exposure before the calculations are run and sealed.
Does Alpine design the slab?
No. The project engineer designs the slab. Alpine provides the slab and base-plate requirements: in the typical configuration, f′c of at least 4,000 psi, thickened to 12 in at posts and 30 × 30 × 12 in at gate posts, with ¾ in anchors at every plate.
Which anchors does Alpine Citadel use?
Every plate uses ¾ in anchors: four per line or corner plate and eight per gate plate. The type, adhesive threaded rod or a code-listed mechanical anchor, is selected and engineered per project under ACI 318 Chapter 17, based on the slab, the loads and the installer's needs.
Is an 8 ft enclosure exempt from a building permit?
Confirm permit and zoning requirements with the local authority. Height, use, a roof and local amendments can affect the review. Alpine coordinates the enclosure documentation and state-specific sealing required by the agreed project scope.

Steel vs CMU questions

How much does a CMU dumpster enclosure cost?
Cost depends on the footprint, wall height, finish, gates, foundations and location. 2025 public bids priced complete single enclosures at $20,000–30,000. Obtain a current project quote that identifies all inclusions; a wall-only rate does not represent the full enclosure cost.
Is a steel enclosure cheaper than CMU?
Yes. Alpine Citadel costs less than a comparable CMU enclosure, and it installs faster. Typical installed ranges for 8 ft enclosures are $15,000–20,000 for a nominal 12 × 16 ft single and $21,000–30,000 for a nominal 24 × 12 ft double, including the engineering package but excluding concrete and site work. 2025 public bids priced complete single enclosures at $20,000–30,000. Compare a CMU quote for the same dimensions, gates, finish and scope.
How long does a steel enclosure take to install compared with CMU?
Most Citadel enclosures assemble in one day once the designed concrete foundation is ready. This does not include design, approvals, fabrication, delivery or concrete work. A CMU schedule includes building the block walls, grouting and curing, plus gate installation. Ask both suppliers for a complete project schedule.
Does a steel enclosure need a footing?

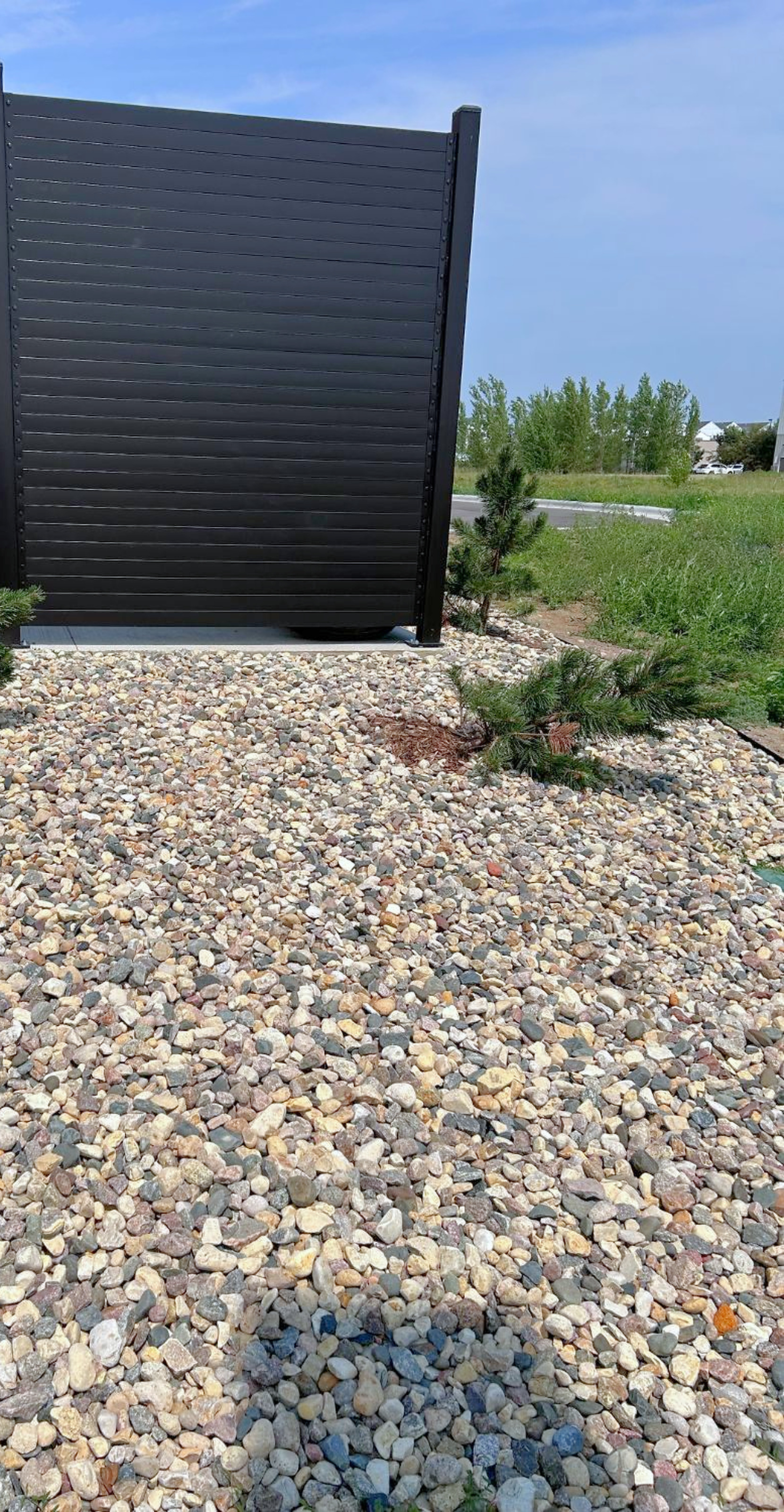

Yes, Citadel needs a designed concrete foundation. Base-plated posts anchor to a slab or concrete supports sized for the project; the steel walls typically do not require a continuous wall footing. The project engineer confirms the concrete, reinforcement, post supports and anchors. Existing concrete must be reviewed before use.
Can a steel enclosure match a masonry building?
A powder-coat color can complement the masonry, trim or brand palette, while the enclosure retains the appearance of horizontal steel slats. Approve the color from a physical sample. A matching color does not by itself satisfy a requirement for masonry; confirm material approval with the local authority.
What if our city requires a masonry enclosure?
Ask the approving authority whether an alternative material can be considered. Alpine can provide product data, drawings, finish information and calculations to support the review. Acceptance remains with the authority.
Engineering package

Start with your site plan

Comparing a CMU bid? Send the drawing and the bid scope; we will price the same scope.
