Gates & fencing · Alpine Citadel

Steel gates and fencing that complete the enclosure

Bring screening and access together with steel swing gates and coordinated fencing. Alpine plans the clear opening, gate swing and hardware around your vehicles, containers and equipment.

Gates

Heavy-duty swing gates for service access

Structural steel double-leaf gates on 8 in round gate posts provide 12 ft or 16 ft clear access as standard; 20 ft clear gates are custom. A lockable latch box and cane bolts hold the leaves open or closed. Coordinate swing and hold-open locations with the service route.

How wide should a dumpster enclosure gate be?

Confirm the unobstructed opening with the local hauler before selecting a gate. Alpine’s standard double-leaf gates provide 12 ft or 16 ft clear access; 20 ft clear is a custom option. The approved drawings coordinate posts, hardware, open leaves and the collection route.

"Clear" means the unobstructed width between the open leaves and posts, the width the truck actually uses. Ask for the clear dimension, not the nominal gate size, when comparing suppliers.

double-leaf steel dumpster enclosure gate, closed, straight-on elevation

Double-leaf steel gate on round gate posts; clear access confirmed on the project drawing.

What gate sizes does Alpine make?

Every Alpine gate is structural steel, hung on 8 in round steel gate posts, and engineered for its site as part of the Alpine Citadel system. Alpine custom fabricates any enclosure design, including several gates in one enclosure and corner-hinged gates.

Gate
Configuration
Typical use
Availability
12 ft clear
Double leaf, swing out
One front-load container per opening
Standard
16 ft clear
Double leaf, swing out
Compactor receivers, wider trucks, tight approaches
Standard
20 ft clear
Double leaf, swing out
Equipment access or site-specific storage requirements
Custom, engineered per project
6 ft
Single leaf
Cart access, staff and pedestrian access
Custom, engineered per project

Standard double enclosures use two 12 ft clear gate openings with a shared center post (see trash & recycling enclosures). Confirm center-post acceptance, swing and service access with the hauler and local authority before selecting the layout.

Requirements

What do haulers and cities require of enclosure gates?

Confirm the required clear opening, swing, hold-open positions, locking and screening with the local hauler and design team. Use those requirements to coordinate the gate and concrete details.

Requirement
Confirm for your project
Coordinate with
Clear opening
Unobstructed width for the collection vehicle and container
Waste hauler
Swing
Required angle and space clear of traffic and obstructions
Hauler and site designer
Hold open and closed
Hold-open and closed positions on the approved plan
Gate supplier and concrete contractor
Sleeves and sockets
Depth, location, drainage and concrete support
Approved gate and foundation details
Independent gate posts
Post and foundation support for each leaf
Project engineer
Center-post acceptance
Whether the service opening must be unobstructed
Hauler and approving authority
Gate material
Permitted materials and finish
Planning department
Gate opacity
Required level of visual screening
Planning department
Hardware

What hardware comes on an Alpine gate?

Every Alpine Citadel gate ships with a heavy-duty lockable latch box, cane bolts that drop into slab sleeves to hold the leaves closed, and hold-open cane bolts that hold them open for the hauler. Every gate is function-tested before it ships, and the kit includes spare hardware (10% extra).

What is a cane bolt?

A cane bolt, also called a drop rod, is a gate-mounted steel rod that fits into a pavement sleeve to hold a leaf in position. Alpine gates include hardware for both closed and hold-open positions.

Cane bolt on a steel gate leaf dropped into its slab sleeve

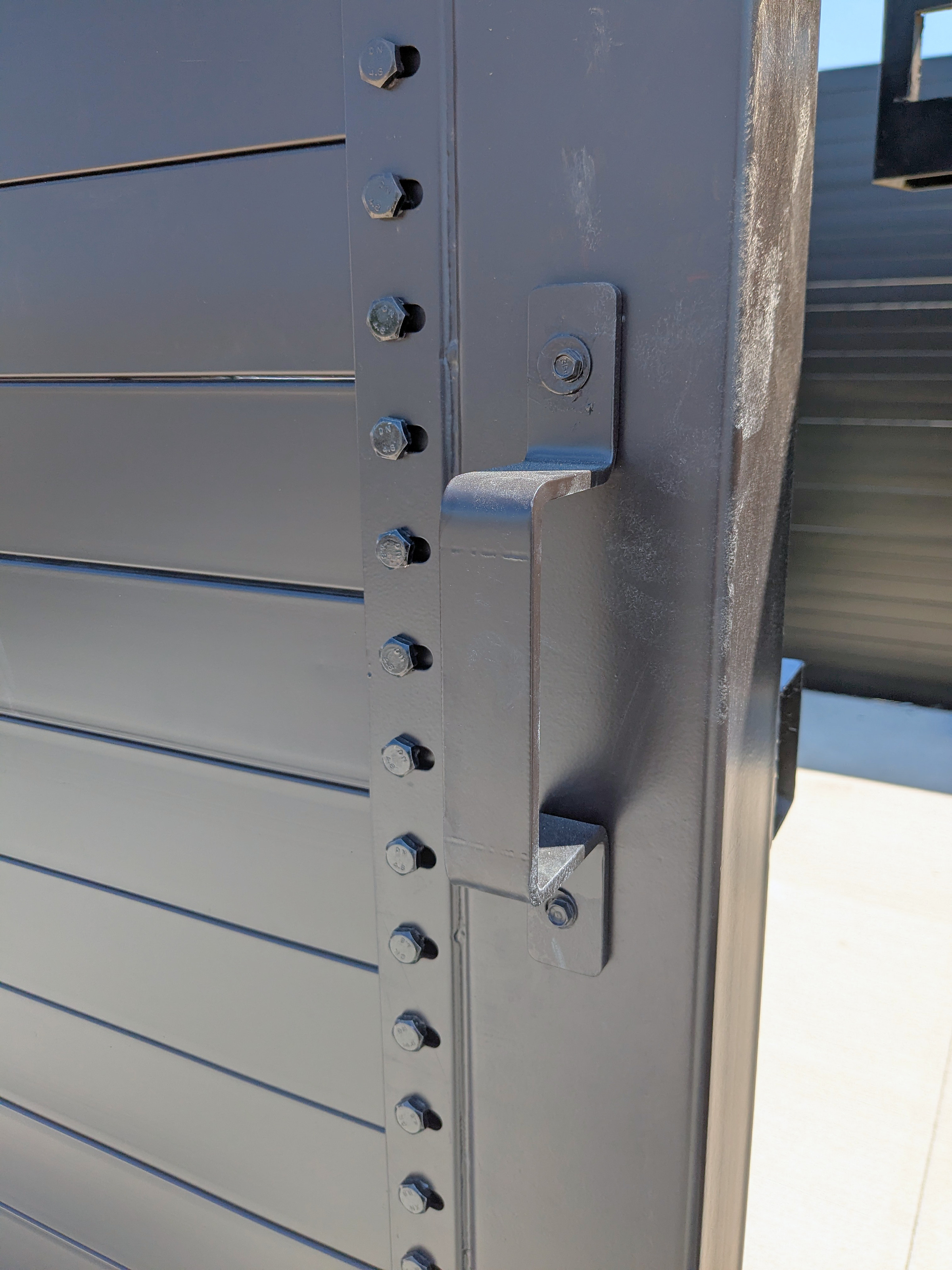

Welded steel handle and latch bracket on a structural steel enclosure gate

What holds the gate up?

The gate post, base plate, anchors and concrete support work together. Alpine uses round steel gate posts with hot-dip galvanized base plates. The approved project details specify the post section, plate, anchors and foundation; the project engineer confirms the concrete support for the selected gate and site loads.

Gate component
Alpine Citadel standard
Gate post
8 in round steel, hot-dip galvanized, capped
Gate base plate
18½ × 13 × ¾ in, hot-dip galvanized
Anchors
Eight ¾ in per gate plate; adhesive threaded rod or code-listed mechanical anchor, engineered per project
Slab at gate post (typical)
f′c ≥ 4,000 psi; 30 × 30 × 12 in thickened zone
Finish
Galvanized, then powder coated to QUALICOAT standards; any RAL color
Engineering
ASCE 7-22 per site; Sealed calculations available in all 50 states

How is gate support designed?

Wide gate leaves place loads on their hinges, posts and foundations. Alpine coordinates these components for the gate width and site wind conditions. Hold-open hardware keeps the leaves in their designated service positions.

How are Alpine gates priced?

Gates, posts and hardware are quoted with the enclosure or fence scope. Pricing depends on the opening, height, hardware, engineering, finish, delivery and installation requirements. Request a current quote and confirm whether foundations, site work and installation are included.

Dumpster enclosure cost guide

Do gates come in custom colors and layouts?

Choose the gate layout and finish with your site access and building requirements in mind. Send the required clear opening and swing direction with your plan. Alpine confirms the configuration, color sample, engineering scope and timing after review.

Custom fabrication

How do I detail enclosure gates on my drawings?

Use Alpine's gate CAD details (plan, elevation, gate post and base plate) and call out: clear opening, leaf configuration, swing direction, hold-open positions, cane bolt sleeve locations in the slab and the thickened slab at gate posts. Alpine's guide spec is Section 32 31 19, cross-referenced to 32 35 00.

Gate questions

What size gate does a dumpster enclosure need?
Confirm the unobstructed opening with the local hauler before selecting a gate. Alpine’s standard double-leaf gates provide 12 ft or 16 ft clear access; 20 ft clear is a custom option. The approved drawings coordinate posts, hardware, open leaves and the collection route.
Should dumpster gates swing in or out?
Alpine gates swing outward to preserve room inside the enclosure. Confirm the required swing angle and hold-open positions with the hauler and site designer.
How do you keep dumpster gates open?
Hold-open cane bolts fit into pavement sleeves to secure the leaves during service. Sleeve locations are coordinated with the approved gate swing and concrete details.
Can the gate be locked?
Yes. Every Alpine gate has a heavy-duty lockable latch box.
Why are Alpine gates hung on separate posts?
Separate round steel posts support the gate leaves. Their base plates, anchors and concrete support are designed around the gate dimensions and project loads.
Are gates included with the enclosure?
Yes. Engineered gates, gate posts and hardware are part of every Alpine Citadel enclosure.
Can I get a 20 ft clear gate?
Yes. A 20 ft clear double-leaf gate is a custom option, engineered per project. Send the required opening, gate height, swing and use so we can coordinate the layout and post support.
Fencing

Horizontal steel slats and perforated infill

Create a consistent perimeter with horizontal steel slats or perforated panels. Select full visual screening or partial openness, then coordinate the height, gates and finish with your site.

What is a steel slat fence?

Alpine steel slat fencing uses horizontal steel tubes held in channels between structural posts. Tight slat spacing creates an opaque face; custom spacing allows partial visibility and airflow.

Infill

Which infill should I choose: solid slats, spaced slats or perforated metal panels?

Choose by what the fence has to do. Solid slats screen completely; spaced slats and perforated metal panels let air and some light through. All three use the same structural steel posts and are engineered per project.

Infill
Opacity
Best for
Notes
Solid steel tube slats, stacked tight
100% opaque
Zoning screening, storage yards, property lines
Fully opaque face; confirm local screening requirements
Spaced steel slats (custom spacing)
Partial
Airflow around equipment; visibility
Not opaque screening
Perforated metal panels
Partial
Architectural face with airflow
Not opaque screening

The engineer evaluates the wind effect of the actual infill geometry and open area for each project.

How tall can a steel slat fence be?

Standard heights are 6, 7 and 8 ft. Custom heights from 5 to 10 ft are reviewed for the site’s wind loads, post support and foundation requirements. Confirm zoning limits and permit requirements with the local authority before specifying the height.

Why structural steel posts?

Structural posts transfer the screen and gate loads to the foundations. Alpine coordinates post size, spacing, connections and mounting for the fence height, infill and site conditions.

Long run of 8 ft horizontal solid steel slat fence

Solid, spaced and perforated infill on the same structural steel posts.

Steel or aluminum slat fence?

Compare the structural system, infill, connections, finish and site-load documentation. Alpine Citadel uses structural steel posts and steel tube slats, galvanized and powder coated to QUALICOAT standards with UV-resistant superdurable polyester. The project drawings define support and mounting requirements.

How does it compare with chain link and privacy slats?

Alpine uses horizontal steel tubes and structural posts to create a continuous architectural screen. When comparing systems, review appearance, opacity, finish, local material acceptance and the complete structural design.

What finishes and colors are available?

Galvanized steel throughout: hot-dip galvanized base plates, sleeves and round gate posts; electrogalvanized square posts, channels and slats. Then a powder coat to QUALICOAT standards with UV-resistant superdurable polyester, in any RAL color. Alpine offers different types of galvanizing and can hot-dip galvanize the entire structure where the site or specification calls for it.

Finish and color sheet

Can I add gates to a fence line?

Yes. Standard double-leaf swing gates provide 12 ft or 16 ft clear access. A 20 ft clear double leaf, 6 ft single leaf and multiple gates are custom options, engineered with the fence layout.

Gates

Fencing questions

Is a steel slat fence fully private?
With solid slats, yes: the face is 100% opaque. Spaced slats and perforated panels trade some privacy for airflow.
Do the slats rattle or come loose?
Alpine's slats are captive: they slide into channels in the posts and stack tight, with only the top and bottom slat of each bay bolted through the channels.
Can the fence follow angles or changes in elevation?
Angled layouts, L-shapes and notches can be reviewed from your site plan. Include grades and elevation changes so the post layout, panel steps and gate clearances can be coordinated.
Do you sell fence panels by the foot?
Alpine fencing is engineered and supplied per project, with a layout and bay schedule for your site. Send the fence line for a quote.
Can I match our building color?
Yes. RAL color selection confirmed by sample.
Perimeter screening

What is perimeter screening, and is it a rated barrier?

Alpine fencing provides visual screening and lockable access. It carries no intrusion or vehicle-impact rating. Where a rated perimeter barrier is required, the project team should specify that protection separately.

Project partnership

Let's discuss your gates and fence line

Send the fence line, required openings and project location. We’ll review the layout, gate options and quotation scope.
