Alpine Citadel: architectural screening in structural steel

A complete steel enclosure system with horizontal slats, structural posts and coordinated swing gates. Alpine Citadel brings visual consistency to service areas and ground-level equipment screening, with layouts developed around your property, daily access and project engineering.

Specification at a glance
Material
Structural steel, galvanized throughout
Finish
Powder coated to QUALICOAT standards; any RAL color
Gates
12 or 16 ft clear standard; 20 ft clear custom
Height range
6, 7, 8 ft standard; 5–10 ft custom
Opacity
100% opaque solid-slat face
Installation
Most enclosures in one day on a prepared slab

Complete steel screening · Coordinated gates · Custom layouts · Site-specific engineering

Explore the options

Choose the screen. Coordinate the finish.

Start with the level of screening your property needs, then coordinate the color and access. Alpine reviews your selections against the site layout, ventilation requirements and structural loads.

Standard infill

Solid slats

A fully opaque face for trash, recycling, storage and service areas that need complete visual screening.

Custom infill

Spaced slats

Horizontal slats with project-specific spacing for airflow and partial visibility. Confirm the required open area with your equipment team.

Custom infill

Perforated panels

A patterned steel face for partial screening and airflow. Panel pattern and open area are reviewed for your application.

Preview a finish direction

Galvanized steel with exterior powder coating. Any RAL color can be reviewed and confirmed by physical sample.

Illustrations shown in charcoal. Screen colors are approximate; approve the final finish by sample.

Plan the access

Standard

Double-leaf swing

12 ft or 16 ft clear opening. A 20 ft clear opening is a custom option. Coordinate swing and hold-open space with your hauler.

Custom

Single-leaf access

A 6 ft single leaf can provide separate access where the project requires it. Location, hardware and clearances are reviewed with your team.

Example double enclosure

Two gate openings

Two 12 ft clear openings share a center post. Confirm this arrangement with the local authority and hauler.

Concept illustrations show the available design directions. Final dimensions, open area, hardware, colors and structural details are confirmed in the approved project drawings.

Steel or concrete block?

Two ways to build a screened enclosure

Alpine Citadel uses steel posts, horizontal slats and matching gates. A CMU enclosure uses concrete masonry units—commonly called concrete block. Both can provide opaque screening; the main differences are how they are built, supported, finished and priced.

CompareAlpine CitadelConcrete block (CMU)
Wall constructionFactory-prepared steel posts and horizontal slats, assembled on site.Concrete blocks laid on site, with reinforcement and grout as designed.
GatesSteel gates and operating hardware supplied with the enclosure.Gate supply, posts and hardware coordinated with the masonry walls.
FoundationPosts anchored to a project-designed concrete slab or supports.Walls typically supported on continuous concrete footings.
InstallationMost enclosures install in one day on a prepared slab.Schedule includes wall construction, grout and curing, plus gate installation.
AppearanceHorizontal steel slats with a factory-applied powder-coated finish.Block walls with the specified masonry texture, color or applied finish.
CostCosts less than a comparable CMU enclosure: typically $15,000–20,000 installed for a nominal 12 × 16 ft single, excluding slab and site work.2025 public bids priced complete single enclosures at $20,000–30,000, including site concrete.

Both systems need an approved foundation. The one-day Citadel installation excludes design, approvals, fabrication, delivery and concrete work. Confirm the permitted material with the local authority before selecting a system.

Compare quotes for the same enclosure

Alpine Citadel costs less than a comparable CMU enclosure. To see it on your project, use the same footprint, height and gate openings, then check that each quote accounts for engineering, foundations, finishes, delivery and installation. Alpine’s published installation ranges exclude concrete and site work; a CMU quote may include them.

The system

The Alpine Citadel system

Alpine Citadel brings posts, horizontal slats and swing gates together in one steel enclosure system. Captive slats form a continuous screen, while separate round posts support the gates. Each kit is prepared for the approved project layout.

Use it for commercial dumpster enclosures, compactor and tire storage enclosures, equipment yards, and mechanical, generator and transformer screen walls.

Alpine Citadel structural steel enclosure, 8 ft, dark bronze powder coat

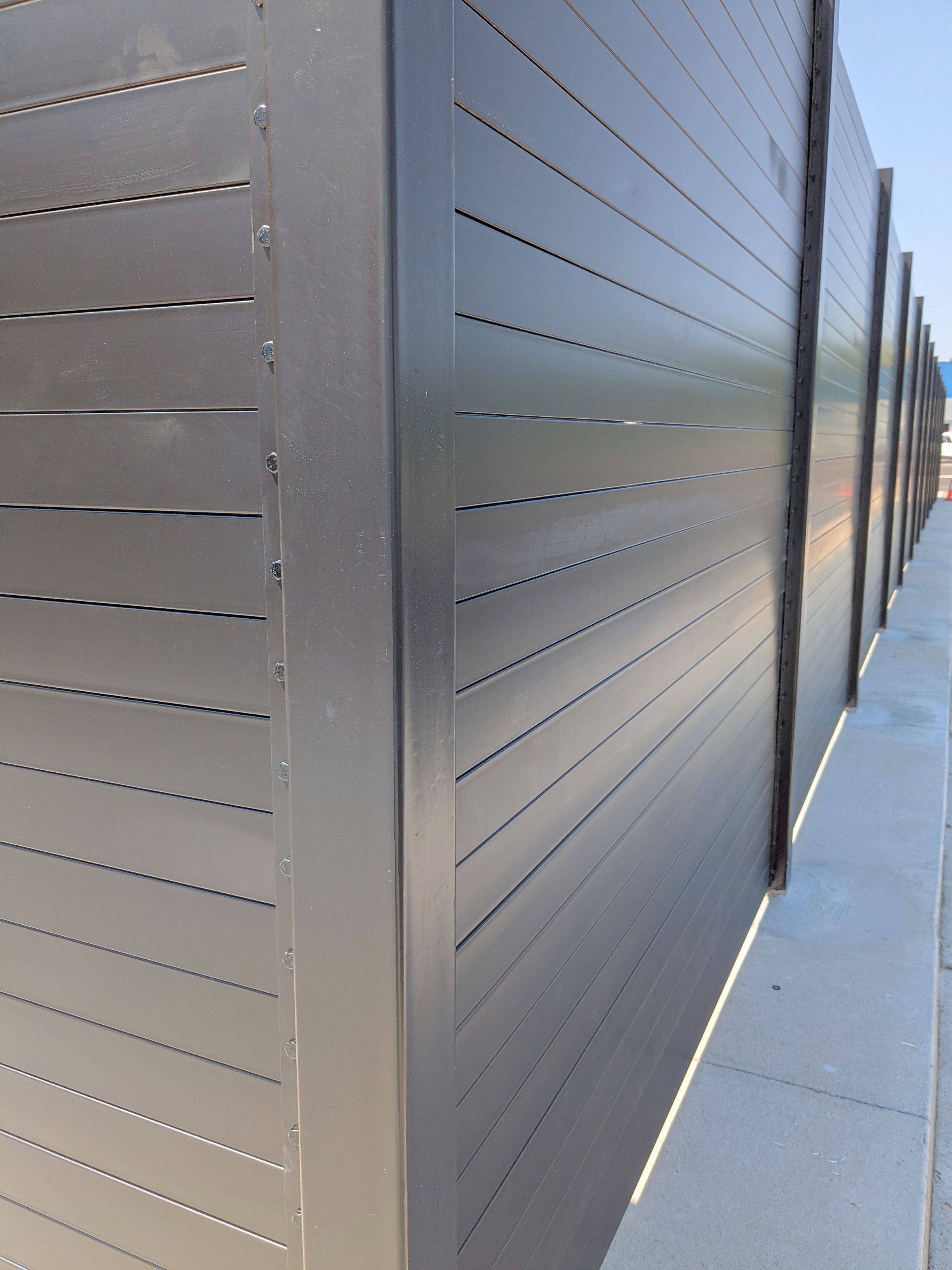

Solid steel slats stacked in a structural steel post channel at an enclosure corner
Standard configuration

Coordinated components, supplied as a kit

Select a standard height of 6, 7 or 8 ft and coordinate the footprint, infill and gates with your plan. Galvanized and powder-coated components arrive together, with parts tagged by bay for installation.

Component
Standard specification
Heights
6 ft, 7 ft, 8 ft
Layout
Layout coordinated with the architect’s drawing; final dimensions shown on the approved plan
Bays (clear, post to post)
Standard set, 15–96 in
Infill
Solid steel tube slats, 0.79 × 3.15 in (20 × 80 mm), captive slide-in, stacked tight for a fully opaque face; only the top and bottom slat of each bay bolted
Posts
4 in square structural steel tube; 8 in round gate posts; capped
Mounting
Base-plated on a concrete slab: hot-dip galvanized ¾ in steel plates — line 10½ × 8 in, corner 10½ × 10½ in, gate 18½ × 13 in
Anchors
¾ in anchors: 4 per line or corner plate, 8 per gate plate; type selected and engineered per project (adhesive threaded rod or code-listed mechanical anchor)
Gates
12 ft or 16 ft clear, double leaf, swing out
Gate hardware
Heavy-duty lockable latch box, cane bolts with slab sleeves, hold-open cane bolts; every gate function-tested before shipping
Finish
Galvanized steel throughout, then powder coated to QUALICOAT standards with UV-resistant superdurable polyester powder
Material
ASTM A36 or equivalent structural steel throughout, with no aluminum components; mill certificates available. Hardware is typically Grade 8 and 316 stainless steel. Noncombustible steel construction
Delivery
One kit per enclosure; parts tagged by bay; hardware packed with 10% extra; spare slats; packing list and layout drawing in every kit
Configure Alpine Citadel

Configure the system for your property

Adapt the height, layout, infill, mounting and gates to your project. Custom options include spaced slats, perforated panels, embedded posts, partitions and steel roofs. Alpine reviews the selected configuration and structural requirements before quotation.

Option
Standard
Custom (engineered per project)
Height
6 ft, 7 ft, 8 ft
5 ft to 10 ft; other heights by engineering
Layout
Layout coordinated with the architect’s drawing; final dimensions shown on the approved plan
Any angle, L-shapes, notches, interior partitions, double and multi-bay enclosures
Bays (clear, post to post)
Standard set, 15–96 in
Non-standard widths
Infill
Solid steel tube slats, 0.79 × 3.15 in (20 × 80 mm), 100% opaque
Spaced slats (custom spacing for airflow or visibility); perforated metal panels
Posts
4 in square structural steel tube; 8 in round gate posts
Custom post profiles and sizes
Mounting
Base-plated on a concrete slab, ¾ in hot-dip galvanized plates
Embedded posts
Gates
12 ft or 16 ft clear, double leaf, swing out
20 ft clear double leaf; 6 ft single leaf; corner-hinged gates; multiple gates per enclosure
Finish
Galvanized steel, powder coated to QUALICOAT standards
RAL color selection confirmed by sample; hot-dip galvanizing of the entire structure where the site or specification calls for it
Options
—
Bollards; covered (steel-roofed) enclosures; pedestrian gates
Anchors
¾ in, 4 per line/corner plate, 8 per gate plate
Type selected and engineered per project
Engineering
ASCE 7-22, engineered for each site's wind speed, exposure category and risk category; base-plated or embedded posts; site engineering package included for the example configurations
Engineered per anchor type, foundation and site; Sealed calculations available in all 50 states; package on the agreed project schedule; non-standard engineering quoted per project
Delivery
One kit per enclosure, tagged by bay
Kits organized by site and release
Example configurations

Example enclosure layouts

Start with these two example layouts: a nominal 12 × 16 ft single enclosure and a nominal 24 × 12 ft double. Each can be adapted to your site. Use the clear dimensions and gate openings below when comparing layouts or requesting quotes.

8 ft shown; 6 and 7 ft enclosures use the same plan.

Size (8 ft shown)
Interior clear (W × D)
Outside footprint
Gate
Containers
Single · nominal 12 × 16 ft (TE-S12F)
16 ft 8 in × 12 ft 2 in (200 × 146 in)
17 ft 4 in × 13 ft 2 in (208 × 158 in)
One 12 ft clear
1 + carts
Double · nominal 24 × 12 ft (TE-D24C)
26 ft 2 in × 12 ft 2 in (314 × 146 in)
26 ft 10 in × 13 ft 2 in (322 × 158 in)
Two 12 ft clear on a shared center post
2

The example double uses two 12 ft clear gate openings with a shared center post. Confirm that the local authority and hauler accept this arrangement. A double with one wide opening is a custom design.

Pricing

How much does Alpine Citadel cost installed?

Use these ranges to plan an 8 ft Alpine Citadel enclosure. They include installation and the engineering package for the example layouts; concrete and site work are additional. Your quote confirms the dimensions, gates, finish, delivery and installation scope. Custom sizes and multi-site programs are quoted individually.

$15,000–20,000
Single, nominal 12 × 16 ft, 8 ft high, typical installed cost
$21,000–30,000
Double, nominal 24 × 12 ft, 8 ft high, typical installed cost
On request
Program pricing for multi-site rollouts
Included
Engineering package for the example configurations

Excludes slab and site work; includes the engineering package for the example configurations. Ranges are typical, not quotations.

Gates and hardware

Gates and hardware for daily access

Standard double-leaf swing gates provide 12 ft or 16 ft clear access on 8 in round steel gate posts. A lockable latch box and cane bolts hold the leaves open or closed. Coordinate the opening, swing and hold-open locations with your hauler or equipment supplier.

Pedestrian access, additional gates and non-standard openings are reviewed with the project team. Availability and engineering requirements are confirmed before quotation.

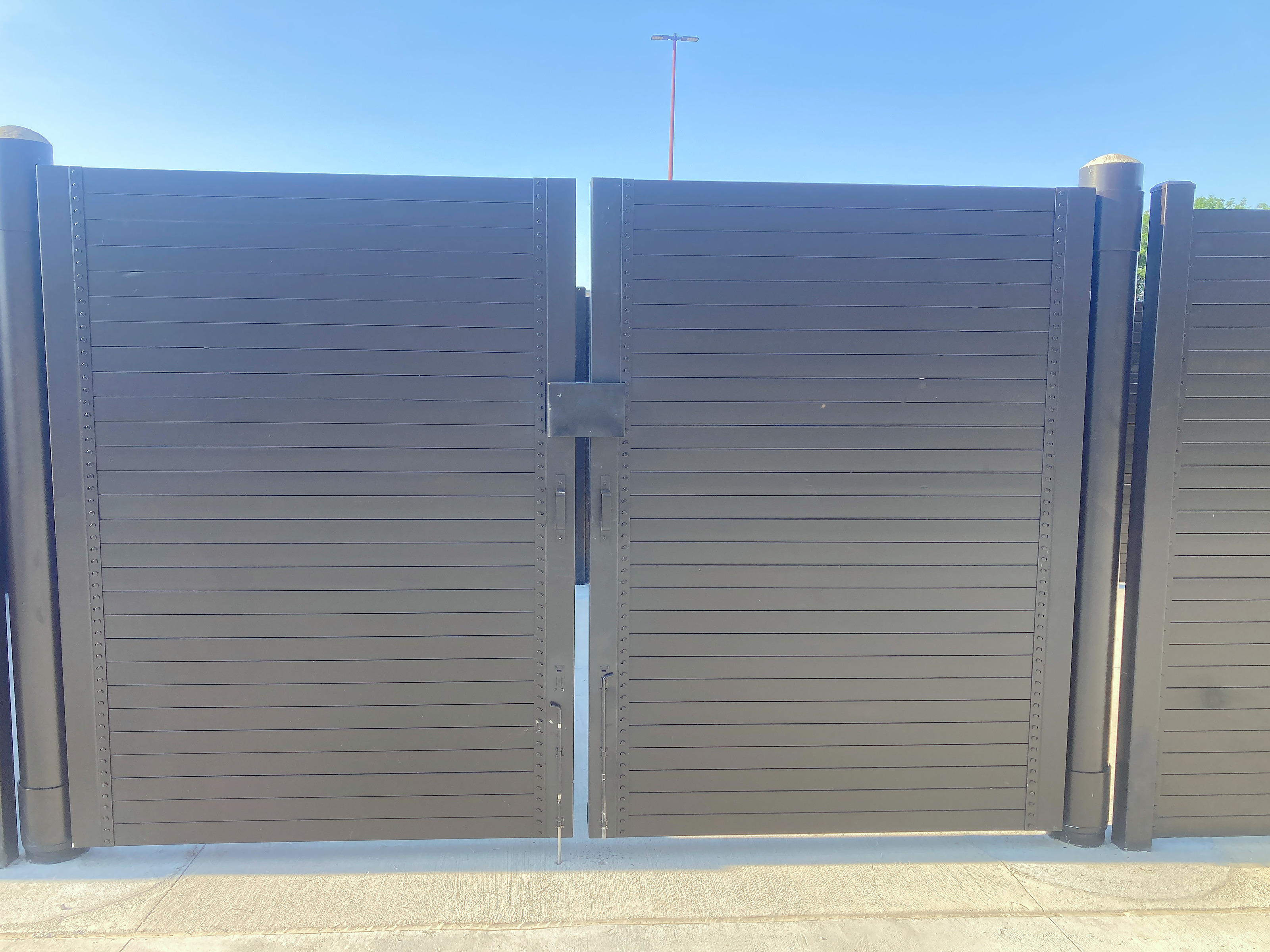

Double-leaf steel gate with lockable latch box
Hot-dip galvanized base plate under a powder-coated round gate post
Finish

Finish and corrosion protection

Galvanizing protects the steel before the exterior powder coating is applied. Base plates, sleeves and round gate posts are hot-dip galvanized; square posts, channels and slats are electrogalvanized. RAL colors are approved by sample. Alpine offers different types of galvanizing and can hot-dip galvanize the entire structure where the site or specification calls for it, for example on coastal or corrosive sites.

Engineered, delivered, specified

Engineering, delivery and installation

Alpine Citadel is designed to ASCE 7-22, with steel per AISC 360 and anchorage per ACI 318 Chapter 17. Every project is checked for its own wind speed, exposure, risk category, height, anchor type and foundation, then ships as one kit tagged by bay.

What is the engineering basis?

Reference calculations cover a defined configuration and loading basis. The project engineer checks the actual site conditions, height, bay spacing, post sections, gate arrangement, anchors and concrete support before applying that basis to a project.

Engineering: design basis, anchors and slab

What slab and anchors does Alpine Citadel need?

The typical configuration calls for a concrete slab with f′c of at least 4,000 psi, thickened to 12 in at posts and to 30 × 30 × 12 in at gate posts. Anchors are ¾ in, four per line or corner plate and eight per gate plate. The project engineer designs the slab; Alpine provides the slab and base-plate requirements.

How does Alpine Citadel arrive and install?

Each kit includes tagged components, spare slats, extra hardware, a packing list and layout drawing. Most enclosures install in one day on a prepared slab. Choose Alpine installation or a supply-only kit for your contractor, with responsibilities confirmed in the quote.

How do I specify Alpine Citadel?

Name "Alpine Citadel, Alpine Enclosure Systems" as the basis of design and state the site's wind speed, exposure category and risk category. The CSI 3-part guide spec is written for Section 32 31 19, cross-referenced to Section 32 35 00 (Screening Devices), and the submittal includes the layout, bay schedule, product data, sealed calculations and finish specification.

Guide spec and submittal downloads
Downloads

Alpine Citadel downloads

Download product data, engineering references, example layouts, finish information, CAD details and the guide specification in PDF or editable DOCX. Contact Alpine for additional project documentation.

Download
Format
Access
Product data sheet (AES-CIT-DS-01)
PDF
Open download
Engineering overview (ASCE 7-22 basis, anchors, slab)
PDF
Open download
Example configuration sheets: 12 × 16 ft single and 24 × 12 ft double at 6, 7 and 8 ft
PDF
Open download
Finish and color sheet
PDF
Open download
CSI 3-part guide spec, Section 32 31 19
PDF / DOCX
Open download
CAD details: plan, elevation, gate, base plate, embedded post, slab
DWG + PDF
Open download
Sample submittal package (single, 8 ft)
PDF
Contact Alpine
Additional design documentation
Project-specific
Contact Alpine to confirm availability
Installation guide
PDF
Contact Alpine for the current guide

Alpine Citadel questions

What heights does Alpine Citadel come in?
Standard heights are 6, 7 and 8 ft. Review custom heights from 5 to 10 ft with Alpine before specification; the layout, site loads, anchorage and local height limits affect feasibility.
How wide can the bays between posts be?
Standard bay widths range from 15 to 96 in clear between posts. We coordinate the bay arrangement with the overall footprint; non-standard widths are reviewed as a custom option.
Can the slats be spaced for airflow or visibility?
Yes. Custom spaced slats and perforated panels provide airflow and partial visibility. Solid slats provide full visual screening. The project team reviews ventilation, screening requirements and the structural effect of the chosen infill.
Are posts embedded or mounted on base plates?
The standard is base-plated on a concrete slab: each post sits on a hot-dip galvanized ¾ in steel plate with ¾ in anchors, four per line or corner plate and eight per gate plate. Embedded posts are available as a custom option, with the foundation designed for the project.
What colors are available?
RAL colors are available, with the final color confirmed by sample. The finish is applied over galvanized steel to provide a coordinated appearance across posts, slats and gates.
Does the gate open 12 ft clear?
Yes. Standard double-leaf swing gates provide 12 ft or 16 ft clear access. Custom options include a 20 ft clear double-leaf gate, a 6 ft single leaf and multiple gates. Confirm the required access and swing with your hauler or equipment supplier.
Is Alpine Citadel noncombustible?
Yes. The system uses noncombustible steel components. It has no fire-barrier rating and does not reduce required separation distances.
Where can I get drawings and specifications?
Visit Resources for immediate access to product data, example layouts, CAD details and the guide specification in PDF or editable DOCX. Contact Alpine to confirm additional file formats and project documentation.
Specify or send the drawing

Bring Alpine Citadel into your next project

Send your drawing and project location. We’ll help coordinate the layout, access and engineering scope.
