Architectural screening

Screening that belongs in the site design

A screen wall conceals equipment and service areas while complementing the surrounding property. Alpine develops ground-mounted steel screens for mechanical equipment, utility yards and outdoor storage.

The right screen balances appearance with equipment operation. We coordinate the layout, height, infill and gates around required clearances, maintenance access and structural loads.

Applications

Architectural screening for working spaces

Enclosing containers, compactors or tires instead? See enclosures.

What you're screening
What usually drives the design
Section
Ground-mounted HVAC units, chillers and condensers
Zoning screening from streets and neighbors; airflow; service access
Standby generators, pad-mounted transformers, switchgear
Utility clearances; exhaust and cooling airflow
Substations, data-center equipment yards, battery energy storage (BESS)
Ordinance screening; airflow to the equipment; required clearances; taller walls
Outdoor storage, laydown and contractor yards
Zoning: opaque fence or wall, often with a minimum height
Structural steel

Structural steel behind a clean finish

Structural steel posts and captive horizontal slats form a clean, continuous screen. Post sizes, spacing and foundations are coordinated with the height, layout and wind loads at your site.

  • Site-specific design. Engineering accounts for wind loads, steel connections and anchorage.
  • Documentation support. Sealed calculations are available in all 50 states.
  • Exterior finish. Galvanized steel and UV-resistant powder coating, with RAL colors approved by sample.
  • Noncombustible steel construction.
  • Coordinated installation. Parts are organized by bay, with the layout and foundation requirements defined before delivery.
Structural steel screen wall around indoor equipment, grey powder coat, 8 ft

Solid slats, spaced slats and perforated metal panels use the same structural steel posts and are engineered per project.

Select the right balance of screening and airflow

Solid slats provide full visual screening. Spaced slats and perforated panels provide partial screening where airflow is required. Coordinate the selected infill with both the equipment manufacturer and local screening requirements.

Infill
Opacity
Use it for
Wind load
Solid steel tube slats, 0.79 × 3.15 in (20 × 80 mm), stacked tight
100% opaque
Zoning screening, storage yards, trash and tire enclosures
Full solid-wall load
Spaced slats (custom spacing)
Partial
Airflow and visibility around HVAC, generators, BESS
Calculated for the selected infill and site
Perforated metal panels
Partial
Airflow with a finished architectural face
Calculated for the selected infill and site

Open area affects wind behavior. The project engineer evaluates the actual panel geometry and applicable design provisions.

Height and limits

How tall can a steel screen wall be?

Standard screen heights are 6, 7 and 8 ft. Other heights require review of the layout, wind loads, anchorage and local limits. Send the height you need with the site plan so we can confirm a suitable configuration.

Coordinate screening with the equipment requirements

  • Alpine Citadel provides visual screening. If the project has an acoustic performance requirement, coordinate a separate noise-control design with the project acoustical consultant.
  • Not a fire barrier. A slatted screen does not reduce the clearances required around battery energy storage under NFPA 855 or the fire code.
  • Not a rated vehicle barrier. Add bollards where vehicles work close to the wall.
Comparing systems

How do I compare screen wall systems?

Compare the complete assembly, project engineering, finish and installation requirements.

Question
Alpine Citadel
What carries the wind load?
4 in square structural steel posts on ¾ in base plates; custom sections where needed
Is the design engineered for my site?
Yes: ASCE 7-22, checked for your wind speed, exposure, risk category, height, anchors and foundation
Can I get sealed calculations in my state?
State-specific sealing and delivery schedule confirmed for the project
What foundation does it need?
Base plates on a concrete slab (typical: f′c ≥ 4,000 psi, thickened at posts); embedded posts as a custom option
Which coating standard applies?
Galvanized steel with powder coating to QUALICOAT standards
Can it follow my drawing?
Any angle, L-shapes, notches, partitions; dimensions confirmed on the approved drawings
Specifying

How do I specify an Alpine screen wall?

Use “Alpine Citadel by Alpine Enclosure Systems” as the basis of design. Coordinate the screen height, layout, infill, gates and site design criteria with the guide specification. Our Section 32 31 19 guide references Section 32 35 00 for screening applications.

Programs

Can Alpine screen equipment across many sites?

Yes. Alpine coordinates a consistent product standard with site-specific layouts and sealed calculations. Multi-site programs can include commercial enclosures and ground-level equipment screening, with access, finishes and structural details coordinated for each location.

Mechanical & HVAC

Ground-level mechanical equipment screens

Screen ground-mounted HVAC units, chillers and condensers with steel panels that complement the building. We review infill and gate options around the equipment’s airflow, service and replacement requirements.

What is a mechanical screen wall?

Mechanical screens conceal equipment from public view. Alpine offers solid slats for full visual screening and custom spaced slats or perforated panels where the equipment requires airflow through the screen.

What do codes require for mechanical equipment screening?

Mechanical screening requirements come from the local zoning code and equipment specifications. Confirm the required height, opacity, materials and screened sides, then coordinate those requirements with airflow and service access. Review these items before choosing the infill:

  • Which sides must be screened (streets, residential property lines, all sides).
  • Height: often tied to the equipment. Plan the screen at least to the top of the tallest unit unless the code says otherwise.
  • Opacity: some codes require an opaque screen; others accept a partly open one.
  • Materials and color: some codes ask the screen to match or complement the building.

Choose the infill and finish together so the screen meets the approved design intent. RAL colors are confirmed by sample.

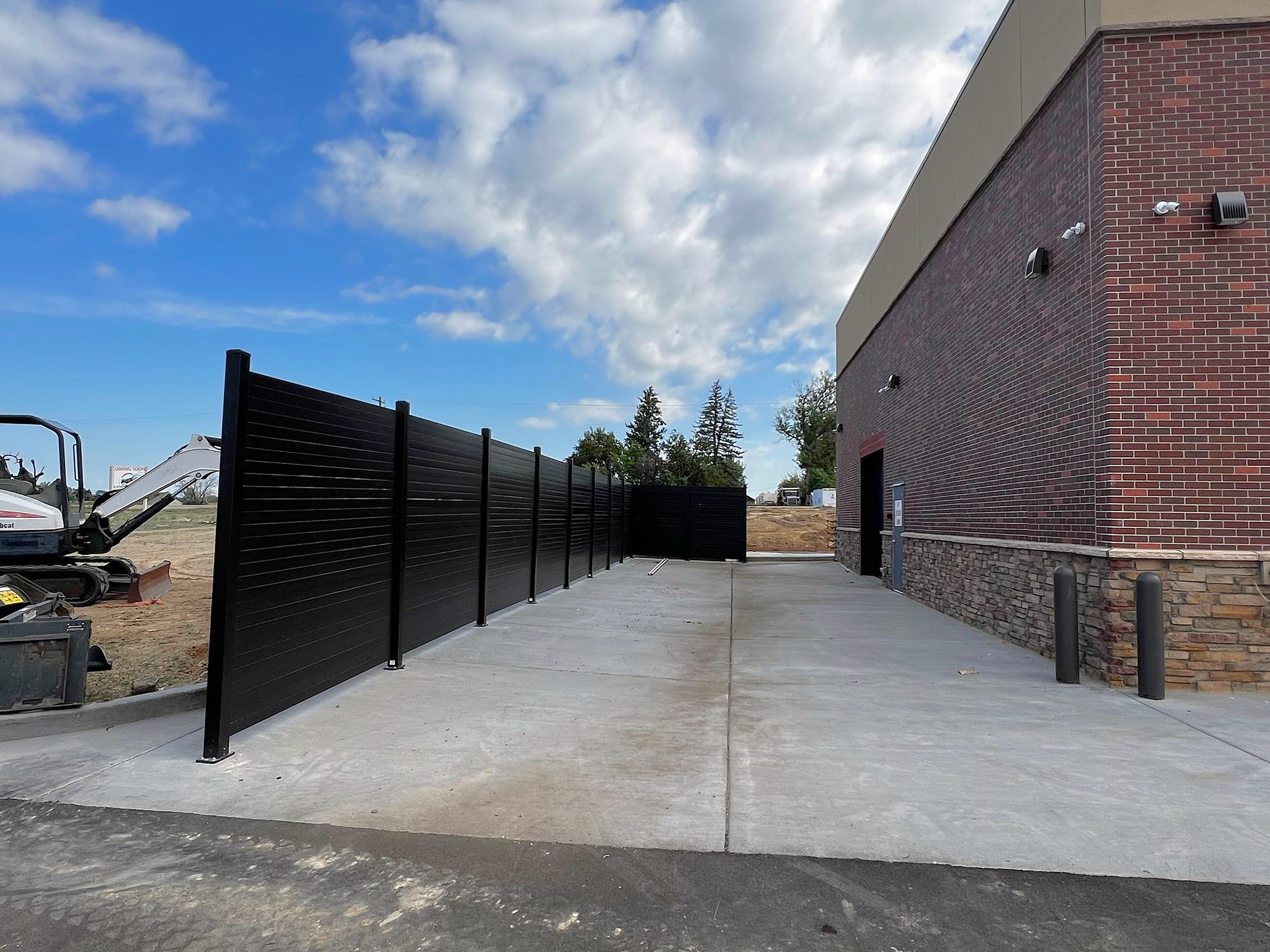

8 ft opaque steel screen wall alongside a commercial building

Solid slats where zoning requires opacity; spaced slats or perforated panels where the units need airflow.

How do you keep airflow and service access?

Begin with the manufacturer’s clearance and ventilation requirements. Keep intake, discharge and service zones open, then position gates for routine maintenance and equipment replacement. Alpine reviews the panel and gate arrangement with your team.

Need
Alpine Citadel option
Full screening
Solid steel tube slats, 100% opaque
Screening plus airflow
Spaced slats (custom spacing for airflow or visibility), or perforated metal panels
Technician access
6 ft single-leaf gate with lockable latch box (custom)
Equipment replacement
Double-leaf gate configuration and unobstructed access width confirmed per project
Tall equipment
Heights from 5 ft to 10 ft; other heights by engineering
Matching the building
RAL color selection confirmed by sample

Review the selected panel opening pattern with the equipment supplier. Airflow through the screen must suit the actual equipment and layout.

A coordinated steel screen system

Alpine Citadel combines structural steel posts, horizontal infill and gates in a system engineered for your site. Galvanized components and exterior powder coating provide a consistent finish across the screen and access points.

Alpine Citadel specifications

Will a screen wall reduce equipment noise?

Alpine Citadel provides visual screening. If the project has an acoustic performance requirement, coordinate a separate noise-control design with the project acoustical consultant.

How do I specify a mechanical screen wall?

Specify under MasterFormat 32 35 00, Screening Devices, with basis of design "Alpine Citadel, Alpine Enclosure Systems" and the site's wind speed, exposure category and risk category. Alpine's guide spec is Section 32 31 19, cross-referenced to 32 35 00. Submittals include the layout and bay schedule, product data, sealed calculations and the finish specification.

Engineering design basis

Mechanical & HVAC questions

How tall should a mechanical screen wall be?
Usually at least as tall as the equipment it hides, unless your code sets a specific height. Alpine Citadel is 6, 7 or 8 ft standard and 5–10 ft custom.
Which Alpine infill options allow airflow?
Spaced slats and perforated panels allow airflow and partial visibility. Solid slats provide full visual screening. The equipment supplier should confirm that the selected infill and clearances provide the required ventilation.
Is Alpine Citadel a rooftop screen?
No. Alpine Citadel is ground-mounted, on base plates on a concrete slab or on embedded posts as a custom option.
Do you provide CAD and Revit files?
CAD details in PDF, DWG and DXF are available as direct downloads on the Resources page. Contact Alpine to confirm Revit availability and any additional project file requirements.
Do mechanical screen walls need a permit?
Confirm permit and zoning requirements with the local authority. Height, use, a roof and local amendments can affect the review. Alpine coordinates the enclosure documentation and state-specific sealing required by the agreed project scope.
Generator & transformer

Generator and transformer screen walls

Conceal standby power equipment with a steel screen planned around cooling, exhaust and service access. Alpine coordinates the walls and gates with the equipment layout and utility requirements.

What is a generator or transformer screen wall?

These screens conceal the equipment pad while preserving the clearances needed for operation and maintenance. They are separate from the generator or transformer’s own weather enclosure.

How close can a screen wall be to a transformer or generator?

Use the clearances provided by the equipment manufacturer and serving utility. Send those requirements with your plan so we can position the walls and gates around the approved access and ventilation zones.

  • Utility access: utilities publish their own clearance and access rules for pad-mounted transformers; place gates to match.
  • Generator airflow: radiator discharge and exhaust need a clear path out of the enclosure.
  • Service: plan a 6 ft single-leaf gate (custom) for technicians, and a 12 ft or 16 ft clear double leaf (standard) where equipment will be set or replaced by crane or truck.
Steel screen wall with a double-leaf service gate on round gate posts

Spaced slats keep cross-flow open around generators; solid slats screen transformers where zoning requires it.

Solid, spaced or perforated?

Use solid slats where zoning requires an opaque screen and airflow allows it. Use spaced slats or perforated metal panels where the equipment needs air through the wall. Alpine custom fabricates spacing and panel layouts per project; spaced slats and perforated panels are airflow options, not opaque screening.

Infill
Opacity
Typical use
Solid steel tube slats, 0.79 × 3.15 in (20 × 80 mm)
100% opaque
Transformers and switchgear where zoning requires full screening
Spaced slats (custom spacing)
Partial
Generators and transformers needing cross-flow
Perforated metal panels
Partial
Airflow with a finished face

Wind loads are calculated for the selected panel geometry, open area and site conditions.

What risk category applies to a screen around backup power?

The project design team assigns the risk category based on the facility and equipment served. Alpine uses that classification, together with the site wind speed and exposure, in the enclosure design.

Engineering

Why structural steel?

Steel posts, captive slats and separate gate supports form a coordinated screen around the equipment yard. Galvanizing and powder coating provide the exterior finish, while project engineering establishes the structural and anchorage requirements.

Plan any additional protection separately

  • Alpine Citadel provides visual screening. If the project has an acoustic performance requirement, coordinate a separate noise-control design with the project acoustical consultant.
  • Not a fire barrier. Where a code requires fire separation from a transformer or generator, that requirement is met separately.
  • Not a rated vehicle barrier. Add bollards where vehicles pass close to the equipment.

Generator & transformer questions

Can I put a solid wall around a generator?
Only if the generator's cooling and exhaust airflow still works. Where it doesn't, use spaced slats or perforated panels on part or all of the wall, and follow the manufacturer's installation clearances.
Does the utility have to approve a transformer screen?
Often. The serving utility controls access and clearances around its pad-mounted transformer. Send its standard with your plan so gates and clearances are designed in.
How tall can a generator screen wall be?
Alpine Citadel is 6, 7 or 8 ft standard and 5–10 ft custom; other heights by engineering.
Can the screen wall be painted to match the building?
Yes. Any RAL color, powder coated to QUALICOAT standards over galvanized steel.
Is a steel screen wall noncombustible?
Yes, the construction is noncombustible steel. It is not a fire barrier.
Utility, data center & BESS

Utility, data center and battery storage screening

Architectural steel screening for ground-level utility and data-center equipment yards. Coordinate infill, equipment access, ventilation and separation requirements with the project team before choosing a layout.

What screening do substations, data centers and BESS sites need?

Plan visual screening alongside security, ventilation and emergency access. Alpine’s steel screens can be reviewed for the proposed equipment layout; required security ratings, fire protection and utility clearances must be addressed by the project design team.

What screening does a substation need?

The utility establishes access, security, grounding and equipment-clearance requirements. Share those criteria before layout so the proposed screening can be reviewed as part of the overall site design.

  • Height: Alpine Citadel is 6, 7 or 8 ft standard and 5–10 ft custom; other heights by engineering.
  • Grounding: metal fences at substations are grounded to the utility's design. Share the grounding requirement at quote so it is in the layout and submittal.
  • Opacity: where a city requires the substation to be screened from view, the solid-slat face is 100% opaque.
  • Risk category: confirm the design classification with the project engineer.
Data center & BESS

How should battery storage screening be planned?

Battery energy storage screening must be coordinated with the equipment supplier, project fire-protection team and approving authority. Confirm security, ventilation, emergency access and separation requirements under the adopted codes and the approved system design.

Design consideration
Confirm with the project team
Screening coordination
Access and security
Required security measures and emergency access
Coordinate gate positions, hardware and any separate rated barrier
Ventilation
Manufacturer’s intake, discharge and clearance requirements
Review open area and panel placement with the equipment supplier
Fire separation
Required distances and any fire-rated construction
Alpine screening has no fire-barrier rating and does not reduce required separation

Review the layout with the equipment supplier, fire-protection team and approving authority before selecting the screen.

What about data-center equipment yards?

Data-center yards often combine generators, chillers, transformers and other support equipment. A coordinated screen can provide a consistent exterior while preserving access to each system.

Alpine Citadel can screen generator and chiller yards with infill selected for visibility and airflow. Coordinate replacement routes, service access and gate openings with the equipment supplier. The project review confirms the proposed height, layout and engineering scope.

Why structural steel for critical-infrastructure screening?

Alpine provides a coordinated layout, structural calculations and anchorage details for the selected screen. Sealed calculations are available in all 50 states, with the engineering scope and schedule confirmed for the project.

  • 4 in square structural steel posts on ¾ in hot-dip galvanized base plates; custom post profiles and sizes for taller walls.
  • Embedded posts as a custom option where there is no slab.
  • Galvanized steel, powder coated to QUALICOAT standards; the entire structure can be hot-dip galvanized for corrosive or coastal exposures; any RAL color.
  • Noncombustible steel construction.

Coordinate specialty protection with the project team

Alpine Citadel provides visual screening. If the project has an acoustic performance requirement, coordinate a separate noise-control design with the project acoustical consultant.

Can one standard cover many sites?

Yes. A common product and finish standard can be adapted to multiple locations, with the layout and structural requirements reviewed for each site.

National programs

Substation, data center & BESS questions

Can a BESS be surrounded by a solid wall?
Only where the approved equipment design permits it. The equipment supplier and fire-protection team should confirm ventilation, clearances and panel placement before a solid screen is selected.
Does a steel screen reduce BESS separation requirements?
A slatted steel screen is not a fire-rated barrier. Do not use it to justify reduced separation distances. Confirm the required distances with the project fire-protection team and approving authority.
Are Alpine walls non-conductive?
No. Alpine Citadel is steel. Grounding is designed to the utility's requirements.
How tall can a substation screen wall be?
Alpine Citadel is built from 5 ft to 10 ft on custom projects; other heights are engineered per project.
Is this a rated perimeter barrier?
No. Alpine Citadel is perimeter screening with lockable gates. It carries no intrusion or vehicle-impact rating.
Can you supply several sites at once?
Yes. Kits ship by site and release, each with its own layout and sealed calculations.
Outdoor storage

Outdoor storage screening for commercial properties

Create a clean perimeter around outdoor storage and contractor yards. Solid horizontal steel slats provide full visual screening, with the layout and gates planned around your property and operating needs.

What screening do zoning codes require for outdoor storage?

Confirm the required height, opacity, materials, setbacks and landscaping with the planning department. Alpine can develop a steel layout around those requirements where steel screening is permitted.

What should I look for in my zoning code?

Find the outdoor storage or screening section and note each of these before you design the wall. If your code lists materials and steel isn't among them, ask about design review or an alternate-materials path.

Item
What codes typically regulate
Alpine Citadel
Opacity
"Opaque," "solid" or "sight-obscuring" fence or wall
Solid slats, 100% opaque
Height
A minimum and sometimes a maximum
6, 7 or 8 ft standard; 5–10 ft custom
Materials
Some codes list allowed materials or bar sheet-metal panels
Structural steel posts and steel tube slats; confirm with planning
Color and finish
Match or complement the building
RAL color selection confirmed by sample
Location
Setbacks, landscaping strips, sight triangles at driveways
Layout coordinated with your plan, including angles

Why structural steel for a storage-yard screen?

A continuous steel screen provides a defined edge around the yard. Posts, bays and foundations are engineered for the proposed height and site loads, with gate locations coordinated around daily traffic.

  • Opaque face: solid steel tube slats slide captive into the post channels and stack tight; only the top and bottom slat of each bay is bolted.
  • Durable finish: galvanized steel, powder coated to QUALICOAT standards with UV-resistant superdurable polyester. Alpine offers different types of galvanizing and can hot-dip galvanize the entire structure for corrosive or coastal sites.
  • Noncombustible: steel construction throughout.
  • Mounting: base plates on a concrete slab, or embedded posts as a custom option for unpaved yards.

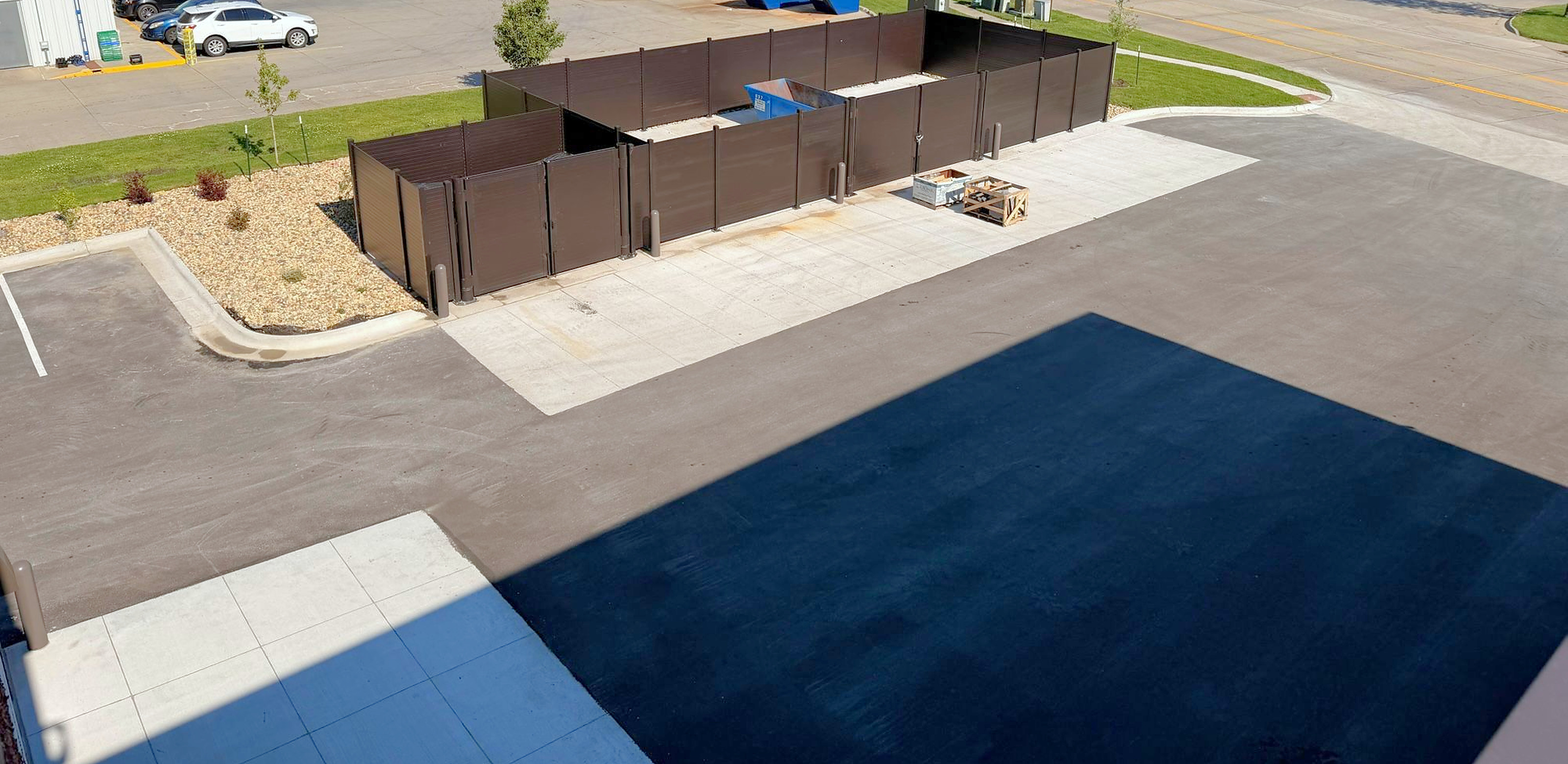

Aerial view of an L-shaped 8 ft structural steel enclosure in site context

Horizontal steel screening follows the approved site layout.

Does a storage-yard screen wall need a permit?

Confirm permit and zoning requirements with the local authority. Height, use, a roof and local amendments can affect the review. Alpine coordinates the enclosure documentation and state-specific sealing required by the agreed project scope.

Can the wall have gates for trucks?

Yes. Gate positions, leaf arrangements and access widths are coordinated with the wall layout. Provide truck and equipment access requirements so Alpine can review the post support, swing and hold-open locations before confirming the configuration.

How is a long screen wall laid out?

We develop post spacing, corners and gates from your site plan, including notches around buildings and utilities. The approved drawing defines the dimensions, and the kit arrives with parts tagged by bay.

Custom fabrication

Outdoor storage questions

What is an opaque fence?
An opaque screen blocks views through its face. Alpine’s tightly stacked solid slats are fully opaque; spaced slats and perforated panels provide partial visibility.
How tall should outdoor storage screening be?
Follow your zoning code. Alpine Citadel is 6, 7 or 8 ft standard and 5–10 ft custom.
Is a steel screen wall a perimeter fence?
It works as perimeter screening with lockable gates. It is not a rated barrier.
Can you match a building color?
Yes. RAL color selection confirmed by sample is available.
Do you supply multiple yards?
Yes. Kits organized by site and release is available.

Screen wall questions

What is the difference between a screen wall and a fence?
A screen wall primarily conceals equipment or storage; a fence may define a boundary or control access. Alpine screens combine visual screening with gates and site-specific structural design.
What CSI section covers screen walls?
MasterFormat 32 35 00, Screening Devices. Alpine's guide spec is Section 32 31 19, cross-referenced to 32 35 00.
Can a steel screen wall be 100% opaque?
Yes. The standard Alpine Citadel solid-slat face is designed for opaque visual screening; confirm the local height, material and screening requirements. Spaced slats and perforated panels are airflow options and are not opaque.
Do slatted screen walls reduce noise?
Alpine Citadel provides visual screening. If the project has an acoustic performance requirement, coordinate a separate noise-control design with the project acoustical consultant.
Do screen walls need engineering?
Alpine screens are engineered for their layout, height, wind loads and foundations. Sealed calculations are available for local review, with scope and timing confirmed for the project.
Are rooftop screens available?
Alpine Citadel is a ground-mounted system. For rooftop equipment, contact us with the project.
How tall can a screen wall be?
Alpine Citadel is 6, 7 or 8 ft standard and 5 ft to 10 ft custom; other heights by engineering.
Project partnership

Plan your screen wall

Send your equipment plan and site address. We return a layout, bay schedule and engineering package on the agreed project schedule.
